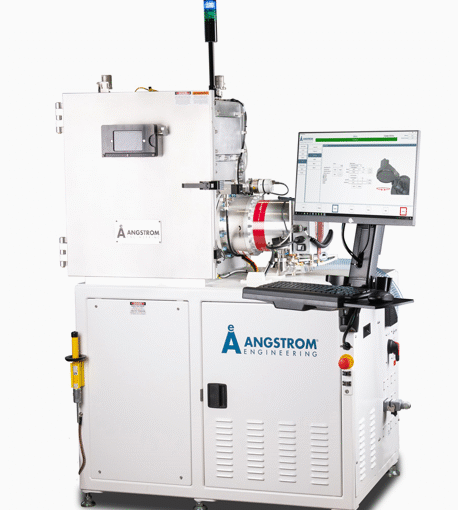

Angstrom Electron Beam Deposition

Location UTS
Description High-vacuum PVD tool with a 6-pocket electron-beam for evaporating metals and dielectrics, allowing high-purity thin-film coatings
Wafer size Up to 150 mm

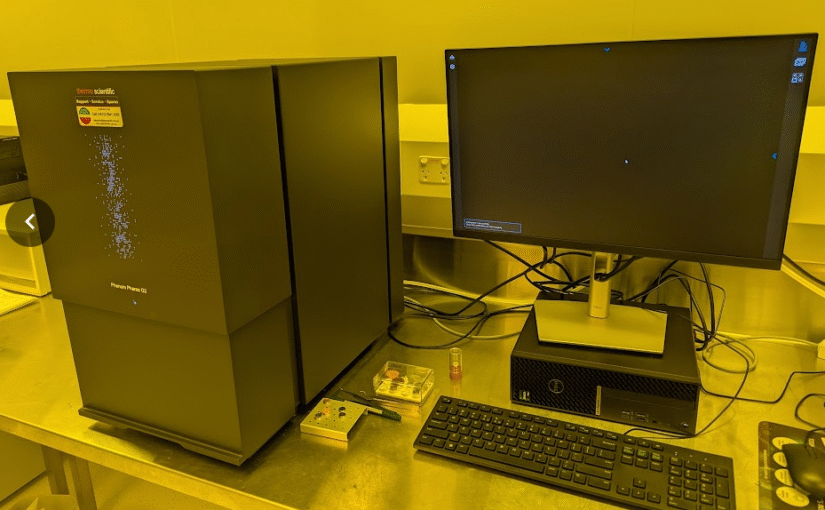

Thermo G2 Phenom Bench Top SEM

Location UTS
Description high resolution FEG benchtop SEM for ultra-fast sample loading and high quality imaging
Wafer size TBC

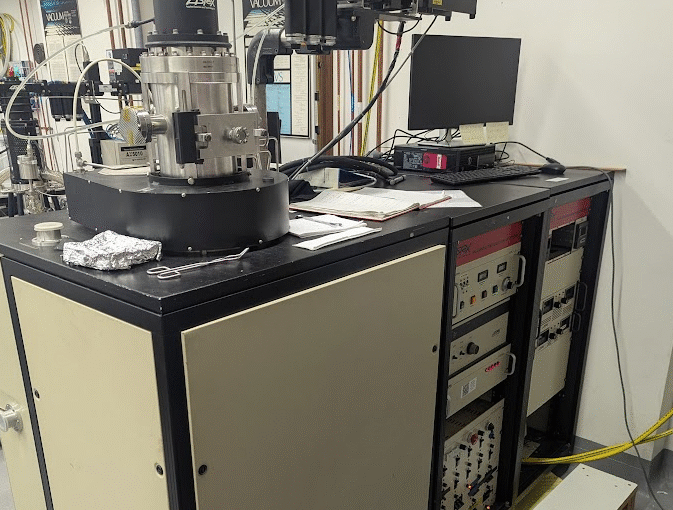

Seki/Astex MW-CVD diamond growth

Location UTS
Description 1000W microwave plasma CVD system for diamond growth, primarily used for poly diamond films containing NV centres.
Wafer size TBC
Gas available TBC
